# ESP Screens: the full reference The [README](README.md) shows what ESP Screens is and how to install it. This page has the rest: every card and setting, what an automation can do with a screen, the top bar, the settings page on the screen itself, and how updates work. - [What you can configure](#what-you-can-configure) - [Alert from an automation](#alert-from-an-automation) - [Wake and sleep from an automation](#wake-and-sleep-from-an-automation) - [Customizing tiles and colors](#customizing-tiles-and-colors) - [Top bar](#top-bar) - [Settings on the screen](#settings-on-the-screen) - [Updates and keeping your settings](#updates-and-keeping-your-settings) - [Guides and installation help](#guides-and-installation-help) ## What you can configure - **Up to twenty tiles**, spread across up to four fixed pages of six tiles each. Search by entity, device, or room, and drag to reorder. - **Per-tile settings:** a custom name, click behavior, a small slider where supported, or a large value for things like temperature and power usage. From firmware 0.2.13, the large value shows a small domain icon next to the title; a number that's too long is truncated with an ellipsis, the unit stays visible. - **Pastel backgrounds per tile:** choose red for an all-off script, green for all-on, or any other color. The title and status stay dark and readable. The color also appears in the screen preview; **Default** restores the normal colors. Requires firmware 0.2.10 or newer. **None** drops the card entirely: the content then sits at the same size directly on the screen background (firmware 0.2.16). - **Clock:** digital or analog. The analog clock has tick marks at 12, 3, 6, and 9 and, on a single tile, shows a calendar block (weekday, day, month) next to the dial; double-width shows the digital time with the date beside it. - **Light control:** brightness, rainbow color, and white temperature according to the light's capabilities. Open the detailed control with a long touch. - **More cards:** climate, vacuum, fan, cover, media player, sensors, select/input_select, number/input_number, switches, scenes, scripts, and buttons. - **Special cards (firmware 0.2.14+):** a **clock** (digital or analog) as a built-in tile, a **weather forecast** with five days on a double-width card, a **graph** of the sensor history in the tile, a **sun path** (`sun.sun`: horizon with the sun between sunrise and sunset), a **timer** (`timer.*`, tapping starts or pauses it), and **presence** (`person.*`). Pick them in the picker like any other tile, or drag them straight into the screen mockup; **Double-width** is an option for every tile. - **Direct control on double-width tiles** (firmware 0.2.19+), like the rows in Home Assistant: temperature − / + or mode buttons (climate), a toggle (switch, light, fan), start/stop/dock (vacuum), open/stop/close or a position slider (cover), volume with mute or previous/play/next (media), − / + or a slider (numbers), previous/next (select), start/pause and cancel (timer), and a single button for scenes, scripts, and buttons. Configurable per tile; **None** keeps the regular card. - **Weather card** with current weather, the coming hours and days including chance of rain or millimeters; **climate card** with an on/off button, mode, fan, and swing settings. The target temperature sits big between − / + keys with one row of mode keys below; the Guition shows fan and swing right away on a card of their own, the CYD behind ···. - **Vacuum card** with the state, battery and charging, start and dock, and how the robot cleans: **vacuum, vacuum and mop, or mop only** for robots that offer a cleaning mode in Home Assistant (such as Roborock), then suction and water. Only the rows the chosen mode uses are shown (app 0.2.46 / firmware 0.2.39). Scenes, scripts, and buttons show when they last ran. A tile that's waiting on Home Assistant shows a small spinner on a light overlay. - **Cover card** for blinds, curtains, shutters, and garage doors, like Home Assistant's own: a tall position slider on which the blind hangs from the top, a tilt slider over slats for venetian blinds, open, stop, and close, and the battery of a battery-powered blind (such as Motionblinds). A cover shows only what it supports (app 0.2.58 / firmware 0.2.50). - **History card** for sensors, numbers, binary sensors, people, and switches, the way Home Assistant shows history: a line with an axis in round steps and clock times for numbers, with the highest and lowest moment, and a timeline with the time in each state for on/off, home and away, and a status. Choose **1 hour**, **24 hours**, or **1 week**; hold a finger on the graph to read the value and time of that moment at the top (app 0.2.59 / firmware 0.2.51). - **Top bar per screen** (firmware 0.2.32+): the name on the left, up to six items of your choice on the right: the time, an analog clock, the date, or an entity from Home Assistant with an icon, such as temperature, humidity, power usage, a door (open/closed), the alarm, who's home, or when something or someone last changed ("5 min ago", "Yesterday"). See [Top bar](#top-bar). - **Screen settings:** standby time, normal and dimmed brightness, night hours, **Dark mode** (firmware 0.2.54+), 24- or 12-hour clock, return to the home page, and optional swiping between pages. Change them in ESP Screens, where they apply at once, or on the screen itself. With firmware 0.2.49+ the screen keeps them, and every one of them is also an entity in Home Assistant, so an automation can switch **Night mode** or **Auto standby** (firmware 0.2.41+), for example to keep a screen on while someone is home, turn **Dark mode** on at bedtime (firmware 0.2.54+), and wake a screen or put it to sleep with its **Wake** and **Sleep** buttons (firmware 0.2.45+). See [Wake and sleep](#wake-and-sleep-from-an-automation). - **Settings on the screen itself** (firmware 0.2.44+): hold the top bar for about a second and a half and the screen opens its own settings page — brightness, night, the clock, swiping, rotation, and what this screen is (name, IP address, firmware, whether Home Assistant is connected, and Restart). Changes show up in ESP Screens within a second. See [Settings on the screen](#settings-on-the-screen). - **Guition rotation:** 0°, 90°, 180°, or 270°, directly from the management page. Native LVGL rotation turns the display and touch together. The CYD keeps its fixed orientation and its own calibration. - **Inspector:** check entities, status, and configuration in ESP Screens. Action feedback shows that a command is on its way.

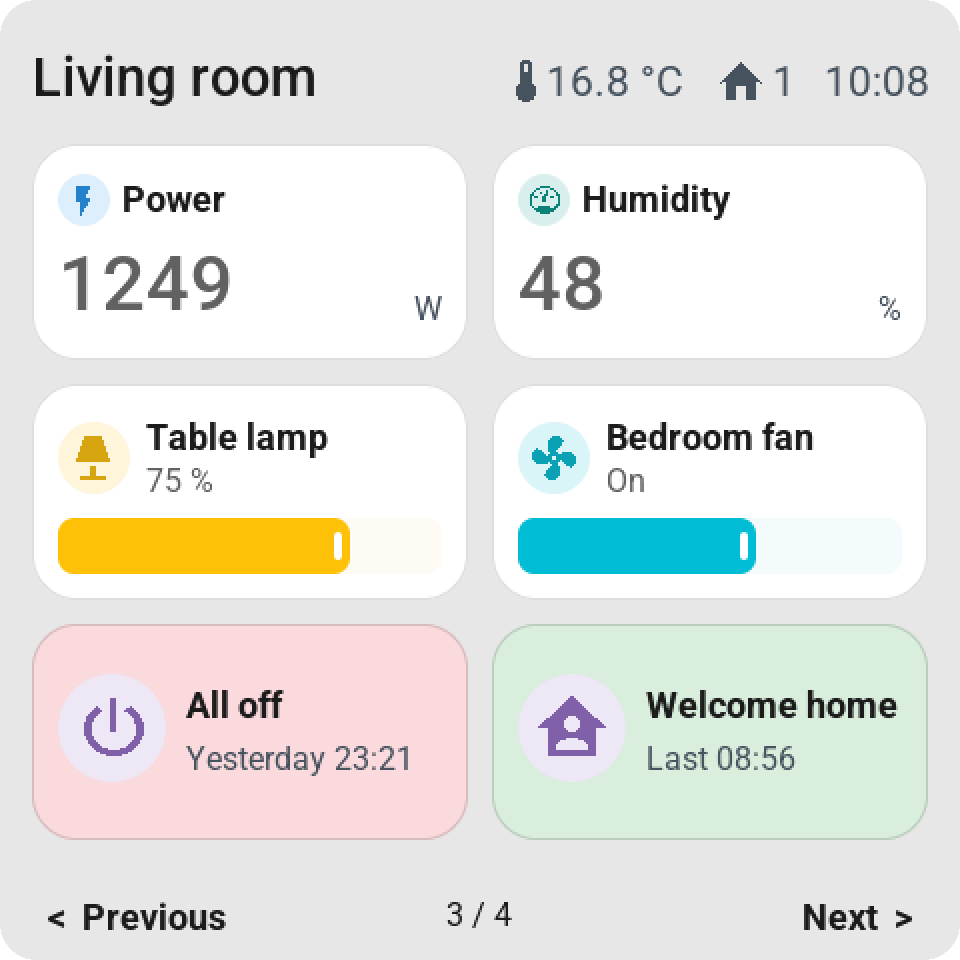

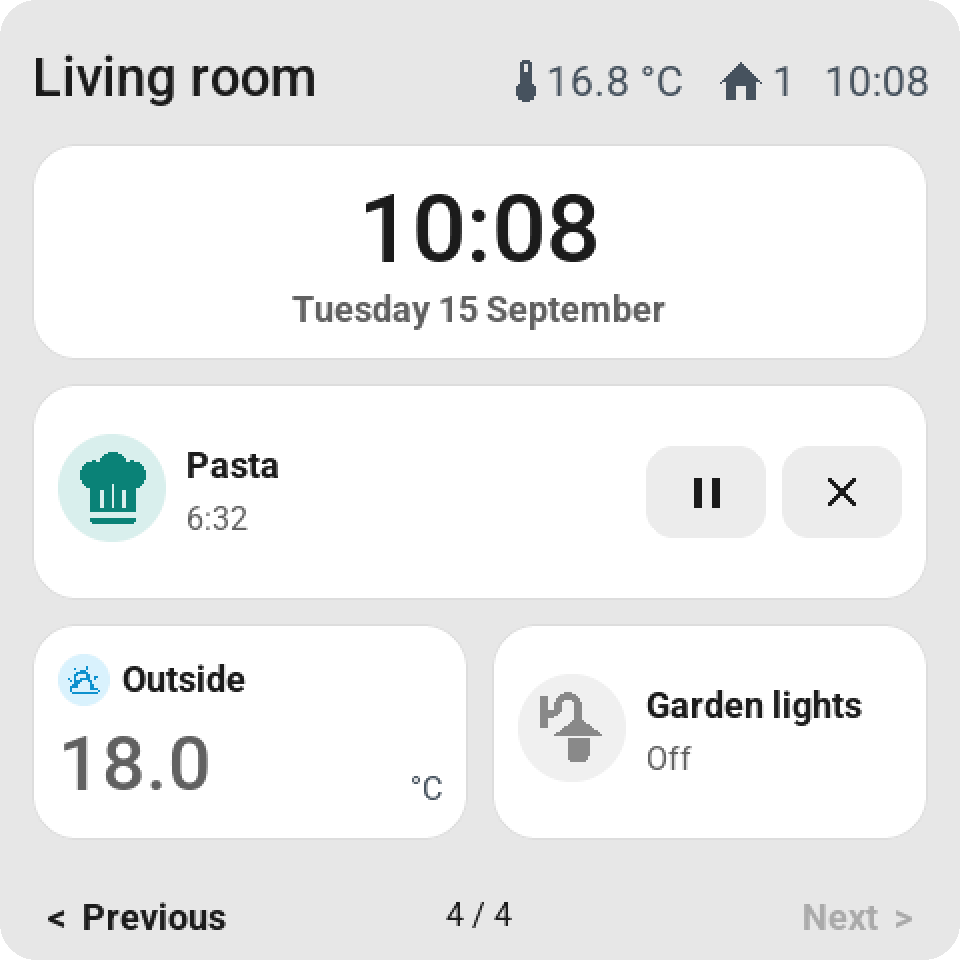

Double-width tiles with direct control: heating mode keys with heat selected, previous, pause and next for the Sonos, and a ceiling fan's speed slider Power and humidity as large values, a lamp and a fan with a small slider on the tile, and an all-off script and a welcome-home scene with red and green backgrounds and when they last ran A digital clock with the date, a pasta timer with pause and cancel, the outside temperature as a large value, and garden lights that are off

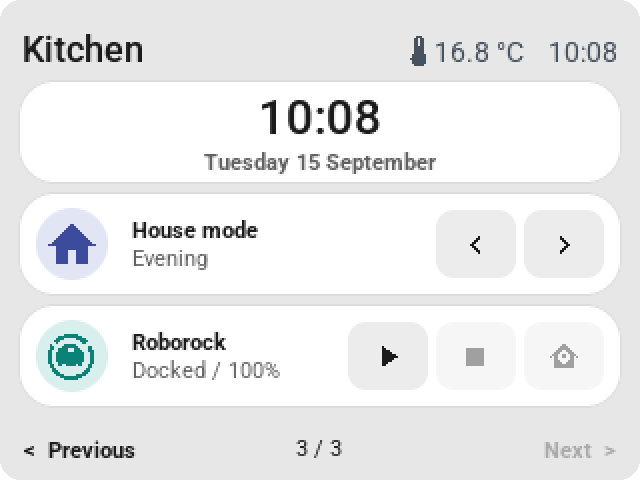

The CYD with heating mode keys, playback keys for the radio and a ceiling fan's speed slider The CYD with power and humidity as large values, a lamp and a fan with small sliders, and red and green scene tiles The CYD with a digital clock, previous and next for the house mode, and start, stop and dock for the robot vacuum

What a tile can do: keys and sliders on double-width tiles, previous and next for a choice, large values, small sliders, pastel colors, a clock and a timer.

Weather card: current weather, the coming hours and the coming days with chance of rain Climate card: the target temperature between big minus and plus keys, the mode keys, and fan and swing choices Light control: color, color temperature and brightness

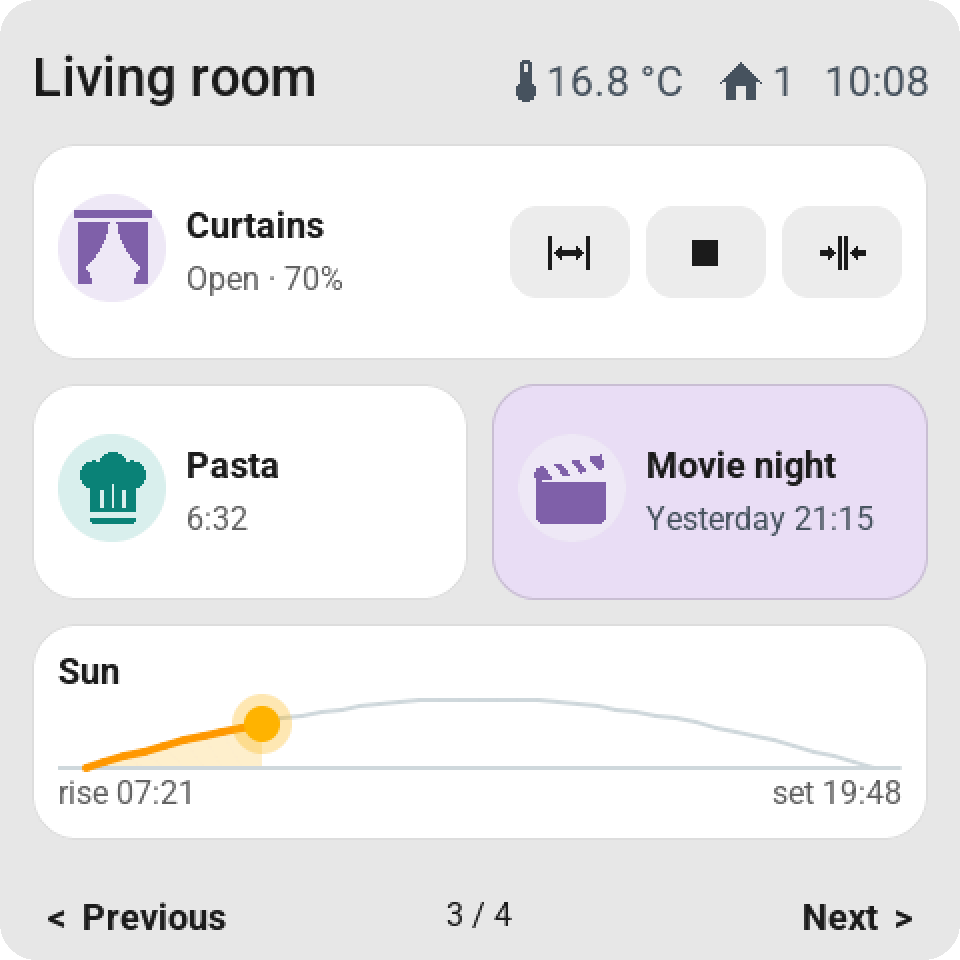

Vacuum card: docked and charging, start and dock, the cleaning mode vacuum, vac and mop or mop, suction and water Fan card: the speed as a tall slider with the fan in it Curtains with open, stop and close, a kitchen timer counting down, a scene and the sun path

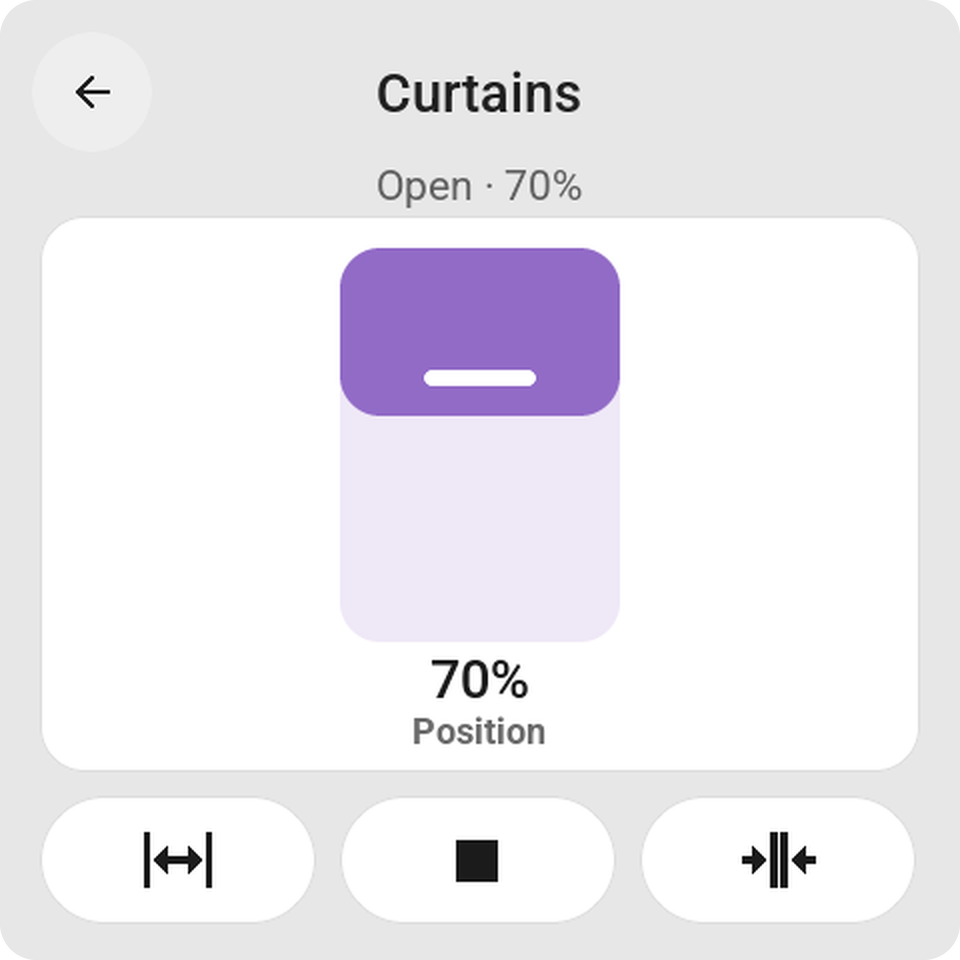

Cover card for a venetian blind: its battery, the position slider with the blind hanging from the top, the tilt slider over slats, and open, stop and close Cover card for curtains: the position slider and the sideways open, stop and close keys Cover card for a garage door that only opens and closes: its icon and the open, stop and close keys, close disabled while it is closed

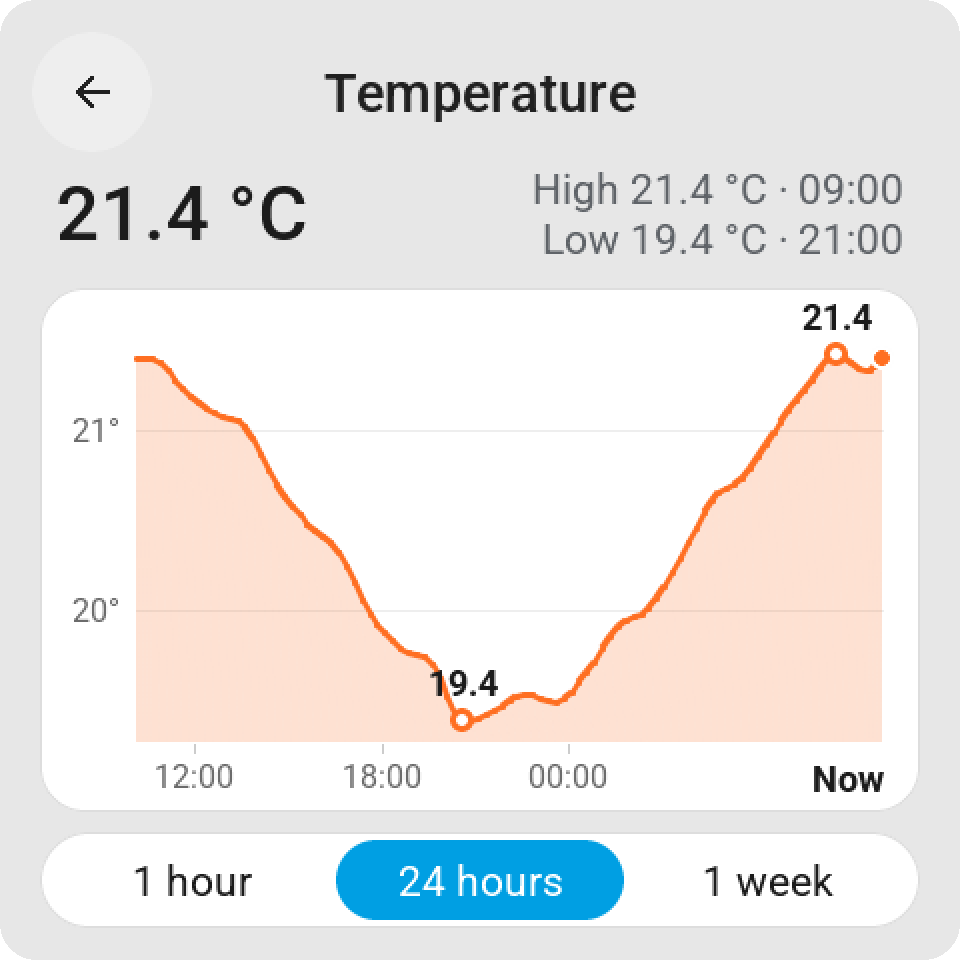

History card for a temperature: the value now, the highest and lowest moment with their times, a line over 24 hours with an axis in degrees and clock times, and keys for 1 hour, 24 hours and 1 week A finger on the history graph: the top of the card shows the average of that hour and its time, the graph stays as it is History card for a person over a week: home, away and the zones they were in, with the time in each

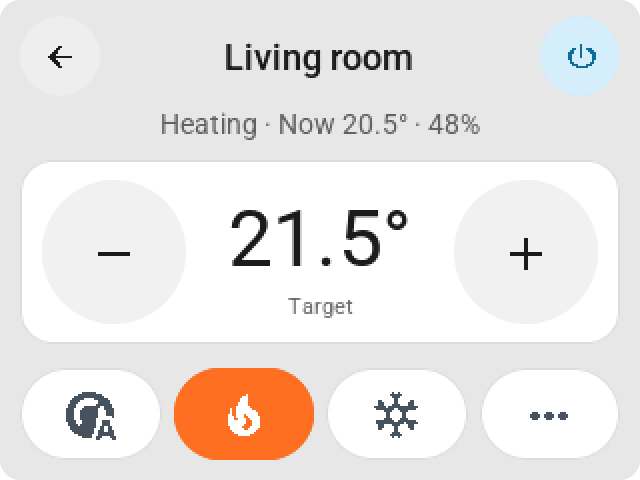

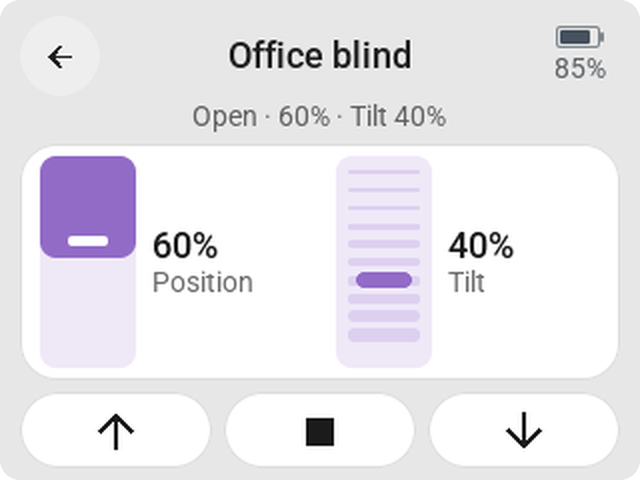

The vacuum card on the CYD: state, battery and charging, clean and dock, the cleaning mode, suction and water The climate card on the CYD: the target temperature with big minus and plus keys and one row of mode keys The cover card on the CYD: the position and tilt sliders with their values beside them, the battery, and open, stop and close

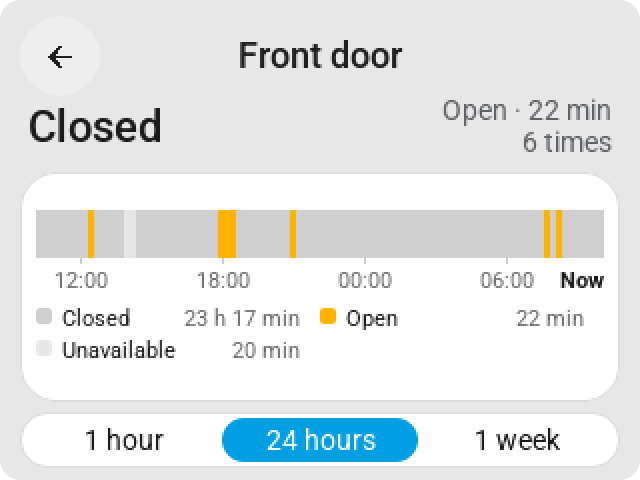

The history card on the CYD: power over 24 hours with its highest and lowest moment, an axis in watts and clock times A finger on the CYD's history graph: the average of that hour and its time at the top The door's history on the CYD: a timeline over 24 hours with the time open and closed

Features depend on the capabilities Home Assistant reports for an entity. The app must keep running to keep the screens supplied with current data. A short tap on a switch switches immediately; the off state gets a gray icon. A long press opens its history card with the toggle at the top right (firmware 0.2.51+). The feedback stops as soon as Home Assistant reports the changed state, with a minimum of 150 ms for switches. Tiles with a mini-slider keep their icon; on the CYD, the icon and text block are vertically centered. ## Alert from an automation

An alert on the Guition: someone is at the door, with a Coming button The Alerts cheatsheet in ESP Screens: the action name of every screen, ready to copy

Every screen has the action **`esphome._show_alert`** (firmware 0.2.31+). It places a card over the entire screen, wakes the screen, and keeps the backlight at normal brightness until someone taps **OK**. In an automation: ```yaml action: esphome.kitchen_screen_show_alert data: title: "Someone is at the door" subtitle: "Door 3, back" icon: doorbell color: orange button_text: "Coming" timeout: 0 flash: true ``` - **`title`** and **`subtitle`**: a single-line title (truncated with an ellipsis if too long) and an explanation that wraps across multiple lines. Empty is allowed; an empty title becomes "Notification". - **`icon`**: a name from the tile picker, such as `doorbell`, `bell`, `alert-outline`, `lock`, `door-open`, `motion-sensor`, `smoke-detector`, `water-alert`, `mailbox`, `car`, or `account`. `mdi:doorbell` and the hex codepoint (`F12E6`) also work, as long as the glyph is included in the firmware. Unknown falls back to the warning triangle. - **`color`**: `red`, `orange`, `yellow`, `green`, `mint`, `blue`, `purple`, `pink`, or `gray` — the same pastel shades as the tiles. Empty gives the white card. - **`button_text`**: the text on the button; empty is "OK". - **`timeout`**: seconds after which the card disappears on its own; `0` means it waits for the button, however long that takes. The button always closes the card immediately, even with a timeout. Standby and night mode wait as long as the card is showing. - **`flash`**: `true` makes the backlight blink four times when the alert arrives. In ESP Screens, **Settings → Alerts** opens a cheatsheet with the exact action name for each screen, a ready-to-paste example, and all fields, icons, and colors. Home Assistant asks for all seven fields; leave a field empty (`""`, `0`, `false`) if you don't use it. A new alert replaces the current one. Every end is reported as the event **`esphome.screen_alert`** with `action` (`ok`, `timeout`, `replaced`, or `remote`), `title`, `screen`, and the `device_id` that Home Assistant adds, so an automation can wait for OK. **`esphome._dismiss_alert`** clears the card remotely. ### All screens at once From app 0.2.45, one event reaches every screen that is online, screens you add later included. ESP Screen Manager passes it on to each screen's `show_alert` action. The fields are the same; the ones you leave out stay empty: ```yaml actions: - event: esp_screens_show_alert event_data: title: "Mail!" subtitle: "There is post in the mailbox" icon: mailbox color: orange timeout: 0 flash: true ``` **`esp_screens_dismiss_alert`** clears the alert on every screen. The app has to be running for these two events; the per-screen actions work without it. ### Ask Claude Use Claude Code in Home Assistant? **Settings → Claude → Install for Claude Code** writes an ESP Screens skill to `/homeassistant/.claude/skills/esp-screens`, so Claude knows the events, the tile settings and every field, color and icon. Then ask, for example: "Put the vacuum on the living room screen", "Give the living room lights a brightness slider and make that tile wide", "Move the vacuum to page 1" or "Show an alert on all my screens when the mailbox is full." Claude reads what a screen shows from `sensor.esp_screens_` and asks before it changes anything. **Download for claude.ai** gives the same skill as a zip to upload in Claude under Customize → Skills. Nothing is written until you press the button.

Settings in ESP Screens: New screen and Firmware & USB, the firmware updates, the Alerts cheatsheet, and the Claude skill

## Wake and sleep from an automation Every screen has two buttons in Home Assistant (firmware 0.2.45+). An automation presses them with the `button.press` action: - **`button._wake`** does what a tap does: a screen in standby lights up, and the standby time starts counting again. On a screen that is already on, only the count starts again. - **`button._sleep`** puts the screen in standby right away, the same as when the standby time runs out, and also works with **Auto standby** off. The screen stays in standby until someone taps it, **Wake** is pressed or an alert comes in; switching Auto standby off doesn't end it. An alert that is showing closes (reported as `remote`). Neither button saves anything on the screen, so an automation may press them as often as it likes, on every motion too. That is the difference with the **Auto standby** switch, which is a setting. To reach several screens at once, list their buttons: ```yaml actions: - action: button.press target: entity_id: - button.kitchen_screen_sleep - button.living_room_screen_sleep ``` Don't target an area or a device with `button.press`: that presses every other button there too, the Wake and Sleep of the same screen included. ## Customizing tiles and colors Click a tile in the screen preview. Under **Pastel background**, choose a color, such as red or green. Optionally adjust the name, click action, mini-slider, or large value. Click **Save & send to screen** to apply the changes. After the first supporting firmware update, this requires no new flash.

Tile settings: name, icon, display, width, direct control, tap action and pastel background The result on the screen: a double-width Heating tile with temperature − and +

The settings of the Heating tile, and that tile on the screen: double-width with temperature − / +.

A color is a fixed choice for that tile: it stays red, for example, even when you run the all-off script. The entity status and action feedback stay separately visible. ## Top bar At the top of the editor, each screen has its **Top bar**: the name on the left, up to six items on the right. **＋ Add** offers the time, an analog clock, and the date (which keep ticking on the screen itself, even without Home Assistant), suggestions from your own home (temperature and power usage from the screen's room, the weather, how many people are home, sunrise and sunset), and a search field for any entity, including a phone (`device_tracker`), a lock, the alarm panel, or `zone.home`. Drag the items to change their order; tap one to configure it: - **What to show:** the state as Home Assistant writes it (21.3 °C, 65%, 1,249 W, Open/Closed, Home/Away, Armed away), or **Last changed**: "Just now", "5 min ago", "Yesterday". A timestamp sensor can also count forward ("In 2 hours"). - **Icon:** automatic, matching Home Assistant (an open door gets an open- door icon), a custom icon from the list, or no icon. - **Show:** always, or **only when active**: the item only appears when it's on, open, home, or greater than 0. Handy for an open door or a running washing machine. Active items are colored like in Home Assistant (open door amber, alarm armed green, alarm triggered red).
